PRODUCT DESCRIPTION

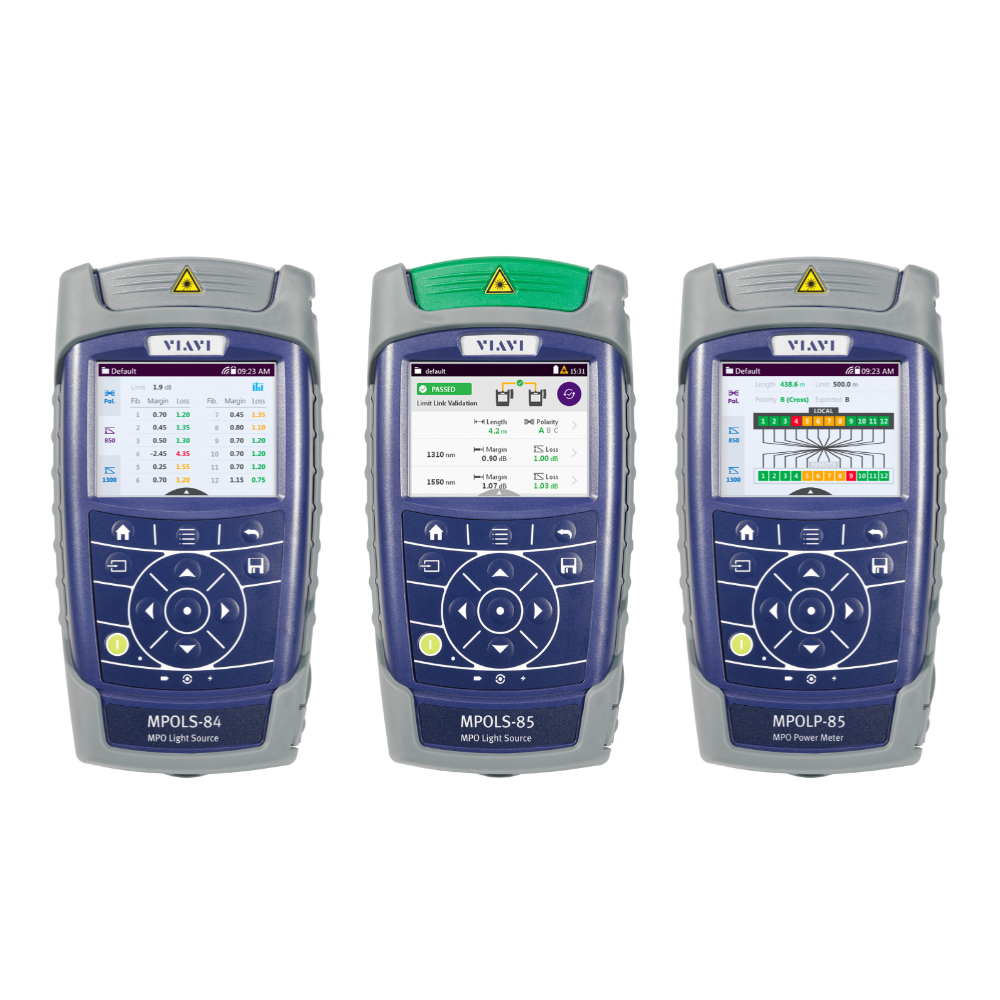

The VIAVI SmartClass Fiber MPOLx is a purpose-built MPO Optical Loss Test Set engineered to meet all Tier 1 (Basic) certification requirements for modern fibre networks. Combining a dual-wavelength light source and a broadband power meter, the MPOLx performs simultaneous loss, length, and polarity testing across 12 fibres in under 10 seconds. Field technicians gain full control at both ends of the test link with integrated touchscreen displays and intuitive automation. It simplifies job setup, speeds up test execution, and eliminates the need for breakout cables.

With integrated end-face inspection, optional patch cord microscopes, and automated pass/fail analysis, the MPOLx ensures your MPO connectors are clean and compliant to IEC 61300-3-35 standards, reducing downtime and rework. Seamless report generation with J-Reporter software provides everything needed for documentation and result sharing with cabling vendors and project managers. Designed for single-mode and multimode networks, this compact, battery-powered device is ideal for data centres, enterprise backbones, and telecom deployments requiring fast, accurate MPO testing and certification.

• - True Tier 1 MPO Certification — Perform loss, length, and polarity tests across 12 fibres at two wavelengths with one button press.
• - Test All Fibre Types — Supports single-mode (1310/1550 nm) and multimode (850/1300 nm) over MPO-12 connections.
• - Ultra-Fast Results — Full test results in <10 seconds per MPO link.
• - Dual-End Control — Initiate and review results at either the source or power meter.
• - Automated Pass/Fail Analysis — Conforms to IEC 61300-3-35 for MPO end-face inspection.
• - MTP® PRO Test Cords — Compatible with pinned and unpinned configurations using gender-neutral cords.
