PRODUCT DESCRIPTION

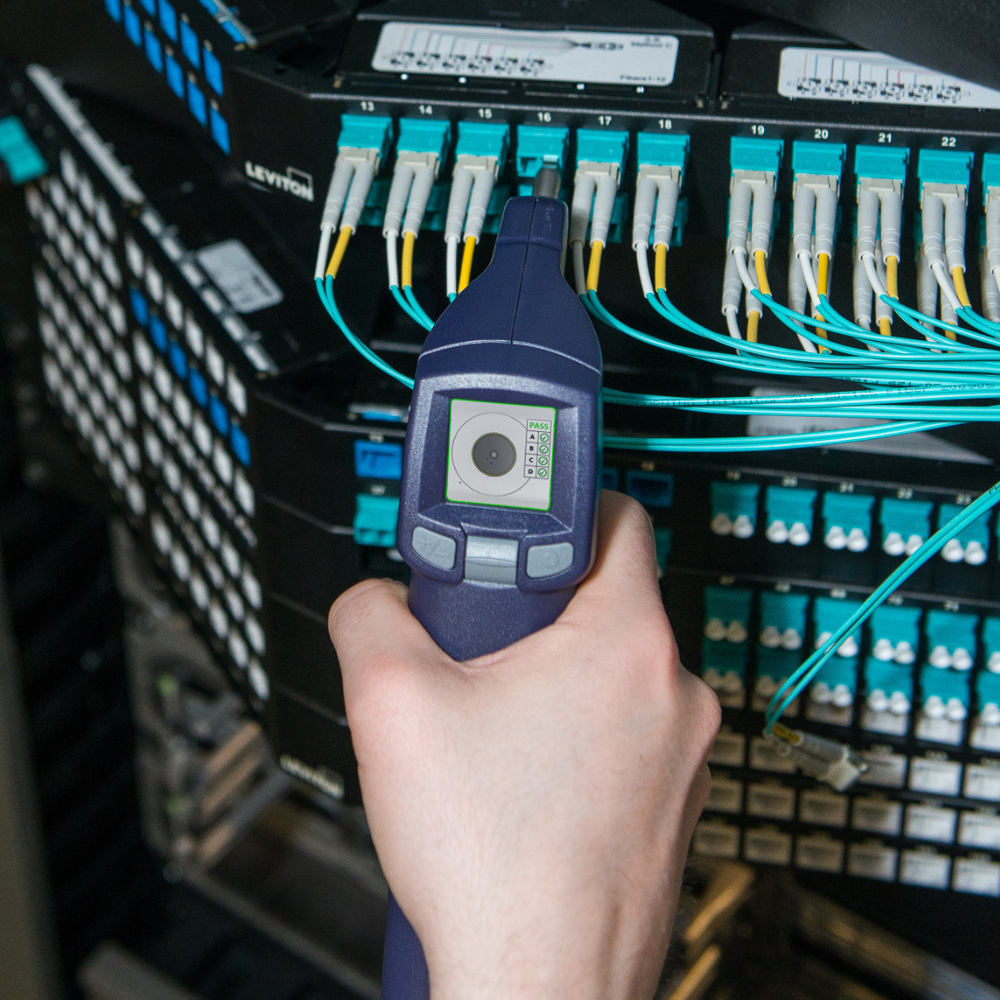

The FiberChek probe builds on industry-leading VIAVI expertise in fibre inspection to deliver an all-in-one handheld for technicians at every skill level. Meeting all fibre-inspection needs with built-in image viewing, auto-focus, pass/fail analysis, and result storage and recall, the FiberChek probe completely automates inspection workflows to ensure fast and accurate performance. Used alone or connected to other devices (via WiFi and USB), the FiberChek probe is the essential fibre tool for every technician.

Features:

• Achieve fully autonomous inspection with an all-in-one solution
• Integrated touch screen with live fibre viewing with auto-centering and auto-focus
• Ensure accurate and fast test performance with user-selectable acceptance profiles
• Connect with other VIAVI instruments and mobile devices via WiFi and USB
• Includes 8 tips - LC & LC/APC, SC & SC/APC, Bulkhead Uni 1.25mm UPC & APC, 2.5mm UPC & APC Patch Lead

Fully Autonomous Inspection with an All-in-One Solution

With FiberChek, technicians get a complete fibre-inspection solution in the palm of their hand. There is no need to connect to other devices to inspect, test, or store. All of those capabilities and more are already built into the FiberChek probe.

• - An integrated touch-screen display shows live images and analysis results with easy navigation
• - With automated end-face analysis built-in, FiberChek lets technicians test and certify to industry standards at the push of a button
• - Easily navigate and select your desired acceptance criteria including IEC-61300-3-35 standards or customer-specific requirements
• - Store, name, and recall test results directly on the instrument

Automate your Inspection Workflow with the Press of a Button

Contaminated connectors are the #1 cause for troubleshooting in optical networks. Maintaining best practices with an Inspect Before You Connect workflow is essential, but without the right tools, it is difficult and time-consuming. FiberChek eliminates these challenges by fully automating every detail of the inspection workflow. Give your technicians the capabilities to work Fibre Smart!

• 1. Find the fibre.
• 2. Focus the image.
• 3. Analyze the fibre end face.
• 4. Record the results.


Fast and Easy Inspection Where You Need It

Fiber connections are everywhere. Unfortunately, some places are harder to access than others. VIAVI fibre inspection probes ensure that technicians can maintain best practices everywhere in their network, regardless of location, accessibility, or connector type. Inspect Before You Connect (IBYC) is recognized throughout the world as the best practice to ensure clean fibre connections. FiberChek ensures that IBYC is easy and routine, letting technicians:

• - Climb towers, poles, etc.
• - Reach overhead raceways
• - Access high-density patch panels and tray systems
• - Check multi-fibre ribbon connectors
• - Test connectors on cards and circuit boards
